[Snippet] Find out a monitor’s size / resolution in Eclipse SWT, on a multi-monitor setup

Recently I needed to find out the resolution of the monitor that is displaying my Eclipse RCP application, while I had two monitors in use.

In SWT, this can easily be done using org.eclipse.swt.widgets.Monitor.getBounds(), which canbe utilized in a multi-monitor setup as follows.

Monitor[] monitors = getShell().getDisplay().getMonitors();
Monitor activeMonitor = null;

Rectangle r = getShell().getBounds();
for (int i = 0; i < monitors.length; i++) {
    if (monitors[i].getBounds().intersects(r)) {
        activeMonitor = monitors[i];
System.out.println("The resolution of the active monitor is " +
    activeMonitor.getBounds().width + " x " +
Tagged with: , , , , , , , ,
Posted in Eclipse RCP, Snippet, SWT

[Logging] Using log4j2 with asynchronous loggers via LMAX disruptor in an Eclipse RCP application, incl. solving sun.misc issue

When it was first released, the web was full of praise for Version 2.x of the quasi standard Java logging framework Apache Log4j. One of its main selling points is that it includes asynchronous loggers for low-latency logging, which apparently comes with pretty amazing performance.

As I needed to include logging into my Eclipse RCP application anyway, I wanted to do it correctly right from the start and leverage the best possible config for logging.

Unfortunately as it turned out, including Log4j 2 in an Eclipse RCP (or any OSGi) application isn’t standard procedure, and not really straightforward. The issues one is likely to encounter are:

  • How to get the Log4j 2 configuration file onto the classpath (cf. Google search).
  • How to get Log4j 2′s core and api bundles OSGified.
  • How to set all loggers async via the LMAX Disruptor high-performance inter-thread messaging library.
  • How to satisfy the dependency from LMAX disruptor to sun.misc (not as easy as you might think).

In the following, I will describe how I got the setup to work, and provide an example application.

DISCLAIMER: This solution was tested with a 3.x RCP application based on the Eclipse Mars (3.8.1) platform and Java JDK 1.7.0_79.

Make the Eclipse RCP use Log4j 2

Setting up an Eclipse 3.x RCP application on Mars

This is described in great details elsewhere. And I guess if you are reading this you have an existing application and have done it already, so I’ll leave this bit out.

Creating a plugin for Log4j 2

The first step is to create a plugin for Log4j 2. Download Log4j 2 and unpack the archive. The trick now is to create a plugin from the Log4j 2 JARs. Why? Because this is by far the easiest way to get the log4j-core packages onto the classpath! On the downside, we will have to re-create the plugin every time we want to update the Log4j 2 version to be used by our application. Fortunately, Eclipse provides a function under New > Plug-in from existing JAR Archives, which is just what we’ll use.

In the wizard, first click “Add external” to select the JARs. Select log4j-core-2.4.1.jar and log4j-api-2.4.1.jar. Click Next. Fill in the details and check “Unzip the JAR archives into the project“. Then press Finish. The wizard is now extracting the JARs and will create a plug-in project as per your details.

Add a dependency on the new logging plugin to your main RCP plugin. Now you can already use the Log4j 2 API. Try it out:

  1. Add the following field to your Application.java:
    private static final Logger logger = LogManager.getLogger(Application.class);
  2. Then, in the start() method, log your first message:

Run your RCP, and you will see the following output in the console:

ERROR StatusLogger No log4j2 configuration file found. Using default configuration: logging only errors to the console.

This is because Log4j 2 must be configured first. You can change the message line as follows to test it.


This gives you the following console output:

ERROR StatusLogger No log4j2 configuration file found. Using default configuration: logging only errors to the console.
11:36:53.523 [main] ERROR net.sdruskat.blog.rcp.asynclog4j2.Application - Works!

Wahey, your first logging output! Still, you will need to configure Log4j 2.

Configuring Log4j 2

Now is a good time to read the Log4j 2 configuration page! We will use a log4j2.xml file.

Create the file in the root of your logging plug-in (New > General > File, fill in details accordingly. Don’t forget to name the file log4j2.xml and not log4.xml (as used for Log4j 1.x)), and fill it with the following content (taken from the Log4j 2 configuration site, see above).

<?xml version="1.0" encoding="UTF-8"?>
    <Configuration status="WARN">
        <Console name="Console" target="SYSTEM_OUT">
          <PatternLayout pattern="%d{HH:mm:ss.SSS} [%t] %-5level %logger{36} - %msg%n"/>
        <Root level="error">
          <AppenderRef ref="Console"/>

Run your RCP app again, and you will see that the error warning in the console disappears, and only the pseudo-error log message remains. All good, but if we were to export the application now and run it outside of Eclipse, we would (I think) get the error message again. Solution: we need to add the configuration file to the binary build! To do so, edit your build.properties file in the logging plugin to look like this:

source.. = .
output.. = .
bin.includes = META-INF/,\

This makes the config file available to exported applications. Great! We have an Eclipse RCP application running Log4j 2! Now, let's make all the loggers asynchronous (which is where the "fun" starts).

Make the Eclipse RCP use asynchronous loggers

Configure Log4j 2 to log asynchronously (in theory)

Now we want to set all logger asynchronously, so we'll have to change log4j2.xml first, according to the Log4j 2 website.

<?xml version="1.0" encoding="UTF-8"?>

    <!-- Don't forget to set system property
         to make all loggers asynchronous. -->

    <Configuration status="WARN">
        <!-- Async Loggers will auto-flush in batches, so switch off immediateFlush. -->
        <RandomAccessFile name="RandomAccessFile" fileName="async.log" immediateFlush="false" append="false">
            <Pattern>%d %p %c{1.} [%t] %m %ex%n</Pattern>
        <Root level="info" includeLocation="false">
          <AppenderRef ref="RandomAccessFile"/>

Note that it says "Don't forget to set system property -DLog4jContextSelector=org.apache.logging.log4j.core.async.AsyncLoggerContextSelector to make all loggers asynchronous.", so this is what we'll add to our product definition (under Launching > VM Arguments), and to the run configuration as well (to be able to test), under Arguments > VM Arguments: -DLog4jContextSelector=org.apache.logging.log4j.core.async.AsyncLoggerContextSelector.

Running the whole affair won't work. Eclipse will complain that

Caused by: java.lang.ClassNotFoundException: com.lmax.disruptor.EventFactory cannot be found ...

Going back to the Log4j 2 config website, we can read that [Making all loggers asynchronous r]equires disruptor-3.0.0.jar or higher on the classpath. No problem (we think), let's do that then.

Getting the LMAX Disruptor library on the classpath

After searching the relevant p2 repositories for a while, you probably find out that there is no p2-ified (and hence target platform consumable) version of the LMAX Disruptor readily available. But there's a mavenized version in the central repo!

So luckily it's Maven to the rescue (don't fret, it's easy-going): We simply need to p2-ify the bundle. And thankfully there is an easy way to do that via the p2-maven-plugin! With this plugin you can supply any mavenized JAR in a p2 repository! This thing saved me numerous times already!

Have a look at the documentation on how to set up a respective POM and package the LMAX Disruptor (tip: groupId is com.lmax, artifactId is disruptor). You should now have a p2 software site built by the plugin, from which you can add the com.lmax.disruptor bundle to the target platform (Window > Preferences > search for "Target Platform" > create a new target platform > add your newly built p2 site to it > pick the disruptor bundle to add to the target platform. You can of course use a target definition file if you are so inclined, it's what I do.).

In your logging plugin, add com.lmax.disruptor as a dependency to MANIFEST.MF. All good to go now! Right? No! Eclipse complains about a

Missing Constraint: Import-Package: sun.misc; version="0.0.0"

This is for the newly added com.lmax.disruptor. Ouch. What to do?

Solving the sun.misc problem

The problem with sun.misc is that ...

... none of the standard OSGi execution environments exposes the package sun.misc, so the bundle using this package will not work on a standard OSGi runtime. (source)

The solution given in the answer on StackOverflow (see source) is to "build a system bundle fragment which declares an Export-Package of sun.misc". What's a "system bundle fragment"? Sounds very OSGi-ish to me. But it's actually fairly simple: You take the JAR (available from your OSGi environment), create a bundle manifest for it, let it export sun.misc. Then you create a fragment bundle. It's easily achieved with the maven-jar-plugin (to create the manifest) and the maven-bundle-plugin (to create the fragment). Simply set up a pom.xml file somewhere, fill it with the following, and run mvn clean install.

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">

    <name>System Bundle Fragment exporting sun.misc</name>

    <description>This bundle extends the System Bundle export list with the sun.misc package such that OSGi bundles may refer to Sun's misc implementation without the OSGi framework itself to provide it in a non-portable way.</description>

                        <Fragment-Host>system.bundle; extension:=framework</Fragment-Host>



This will build and install the respective system bundle fragment. Now you should already know what's next: p2-ify the whole affair, i.e., go back to the POM you've set up to use the p2-maven-plugin in the section before, and add your newly created fragment to the <artifacts> section. Build, and add the new bundle to the target platform.

At this point you might ask yourself why we haven't done the same for the Log4j 2 libraries. I have tried hard, but it's a nightmare to get the bundle onto the classpath if I simply add it as a dependency to a plugin. You could use the Buddy Class Loader technique, but this will brutally break loose coupling between your plugins, so I didn't want to use it.

Once the OSGi-fied LMAX Disruptor is in the target platform, you can add it to the run config, and the error will disappear! To check whether Log4j 2 really logs asynchronously, simply set the configuration status in log4j2.xml to "trace" and search for "disruptor" in the console log.

Now everything is set up for async logging! In case you are wondering where the error message has gone to from the console, check your home directory where there should be a file named "async.log" containing the error message.


Also, I am providing a p2 software site at http://blog-p2.sdruskat.net, where the com.lmax.disruptor (version 3.3.2) and the OSGi-fied sun.misc bundles are available, so you can just add that site to your target platform and forget about what I have written above :).

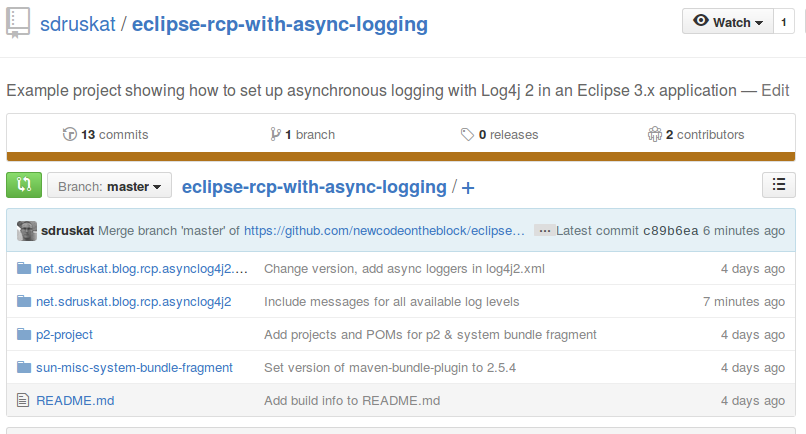

This example is on github.

This example is on github.

You can download the sources for this example (contained in a minimal RCP application) from github. The clone URL is: https://github.com/sdruskat/eclipse-rcp-with-async-logging.git.

Tagged with: , , , , , , , , , , ,
Posted in Eclipse RCP, Log4j, Logging, Maven, Tycho

[Eclipse Expressions] Control the visibility of Eclipse RCP menu contributions depending on text selection with PropertyTesters

For seasoned RCP developers, this will be yesterday’s news I guess. However, I have just spent more than the usual 10 minutes on finding a solution to my problem, so I thought it’d be good to provide a quick write-up.

DISCLAIMER: This solution was tested with an RCP application based on the Eclipse Indigo (3.7.2) platform and Java JDK 1.7.0_51. I cannot see any reason, however, why this wouldn’t work with different setups.

The problem

The case I use for presenting this short tutorial is arguably a corner case. Nevertheless the solution can easily be transferred to other setups. So, I have this FoobarView extending org.eclipse.ui.part.ViewPart. Its only control is an org.eclipse.jface.text.source.SourceViewer (but could be any TextViewer for the purposes of this post). I’ve created a command in plugin.xml which I want to use from a view-dependent popup menu item. However, I want this menu item only to be visible whenever there is any text selected in the SourceViewer. For simplicity, the command should have a handler which should simply print the selected bit of text to standard out. Read more ›

Tagged with: , , , , , , , , , , , , , , , ,
Posted in Eclipse RCP, Tutorial

Eclipse GEF Tutorial: Secondary layout for multiple children of a PolylineConnection with ConnectionLocator and RelativeLocator

In an Eclipse GEF editor I am developing, PolylineConnections can have multiple children (of a type extending org.eclipse.draw2d.Label). I’ve wanted them to be located at ConnectionLocator.MIDDLE, but they should also have a secondary layout, similar to ToolbarLayout (i.e., ordered in a single column, cf. Figure 1).

Simplified depiction of desired layout of figure children of an Eclipse GEF PolylineConnection.

Figure 1: Simplified depiction of desired layout of figure children of an Eclipse GEF PolylineConnection.

Why Two Layouts?

In other words, and as described in my stackoverflow.com question on the topic, “I want to add all label children of a polyline to ConnectionLocator.MIDDLE in a ToolbarLayout…” Read more ›

Tagged with: , , , , , , , , , , ,
Posted in Draw2D, Eclipse RCP, GEF: Eclipse Graphical Editing Framework, Tutorial

List of EMF Notification event types (event type name – int)

Just a very quick post today, which will hopefully be useful to someone other than myself as well.

When using the org.eclipse.emf.common.notify.Notification interface in Eclipse GEF editors, more precisely in any extensions of Adapter or EContentAdapter (cf. respective tutorial at vogella.com) you use in EditParts, you may want to catch certain event types in your Adapter‘s notifyChanged() method.

In my case, I have an Adapter listen to model elements, and want to implement a switch statement for certain event types. I’m able to get the event type in the method via notification.getEventType() and print that to, say, System.out1, but this only gives me an int value. To be able to quickly implement the switch case for this event type, I thought it would be useful to have a list of event types and their corresponding int values. So here it is (one ordered alphabetically, and another one ordered by int value). Read more ›

Tagged with: , , , , , , , , , , , ,
Posted in Eclipse RCP, EMF: Eclipse Modeling Framework, GEF: Eclipse Graphical Editing Framework, Resources

Building a cross-platform, feature-based Eclipse RCP Product with Tycho II: Mind your OSs

If you have followed Building a cross-platform, feature-based Eclipse RCP Product with Tycho (the umpteenth), and have run the build on a Windows system, you will have ended up with non-executable products for Mac OS X and Linux.

What this means is that the product will build just fine, but when transferring the product zips to the target system (Mac OS X, Linux), unzipping them, and trying to run them by double-clicking on the executable, nothing will happen. This is due to the fact that Windows does not know about file system permissions, as used for *nix systems (such as Mac OS X and Linux). Read more ›

Tagged with: , , , , , , , , , , , , , , , , , , , , , ,
Posted in Build, Eclipse RCP, Operating System, Tutorial, Tycho

Dynamically calculating the position constraints for a figure in a GEF editor layout in relation to another figure

I’ve worked on the implementation of a GEF editor for an EMF-based model, using both the GEF book and vainolo‘s great GEF tutorials. The model consists of several types of nodes and connections, with different layout requirements for the display of their figures in the editor, as follows. Read more ›

Tagged with: , , , , , , , , , , , , , ,
Posted in Draw2D, GEF: Eclipse Graphical Editing Framework, Tutorial

Building a cross-platform, feature-based Eclipse RCP Product with Tycho (the umpteenth)

DISCLAIMER: This solution was tested with Eclipse Indigo (3.7.2), Java JDK 1.6.0_37, Tycho 0.16.0, using a Target Definition which contains p2 repositories only, and a Product Definition which is feature-based. A “delta pack” is not needed, as all necessary plug-ins can be pulled from Eclipse release-train p2 repositories.
Other setups may work, but have not been tested.

If you build on a Windows system, you will end up with non-executable products for Mac OS X and Linux. For more information, and how to fix this, please read Building a cross-platform, feature-based Eclipse RCP Product with Tycho II: Mind your OSs.
While the info in this post can easily be found elsewhere, I’m trying to give a beginner-friendly, hopefully at least half-coherent explanation of the topic. Part of the rationale behind this is to make a note to myself, so please forgive any inaccuracies (or better still, comment on them).

When I first set out to build an RCP application, I had to declare dependencies to mavenized OSGi-bundles, which very quickly led me to Tycho, a “set of Maven plugins and extensions for building Eclipse plugins and OSGi bundles with Maven”. And while I managed to get my basic build to work relatively quickly with Tycho 0.13.0 (after a few posts to the immensely helpful tycho-user mailing list, a few questions on stackoverflow.com, and a dozen bundles of pulled out hair), I ran into problems with realizing a working cross-platform build. Read more ›

Tagged with: , , , , , , , , , , , , , , , , , , , ,
Posted in Build, Eclipse RCP, Maven, Tycho

A Stack Exchange site for the Eclipse community?!

Earlier this week, I’ve been listening to Episode #87 of the (then) Stack Overflow Podcast, where Jeff Atwood and Joel Spolsky as well as the (then) new Community Coordinator Robert Cartaino discussed some of the fundamental features of and ideas behind the Stack Exchange platform, which sets it apart from other interactive community platforms such as phpBB or vBulletin.

Websites built on Stack Exchange (SE) are Q&A sites. And while some of the other community platforms (e.g., see above) are often used for this kind of interaction – people asking questions and receiving answers -, there are some features that do set SE apart from forum/message board (MB) type platforms. In the following, I will sum up some of those features. While the (incomprehensive) list is inspired by the podcast, it does reflect my own opinions only … one of the latter being that SE is great technology. Read more ›

Tagged with: , , , , , , , , , , ,
Posted in Discussion

EclipseCon Europe 2012 – lessons learned

Last week I went to my first ever developer conference (apart from a local Eclipse Demo Camp for the Juno release): EclipseCon Europe 2012. It could be summed up in one word: GREAT!

In the course of the conference, I’ve learned a great deal about Eclipse, its projects, Java, OSGi (EclipseCon was co-locating with the OSGi Community Event 2012), and programming in general, but also about open source communities, more precisely the Eclipse community.

In this post I’d like to share some of the stuff I’ve learned as well as some more general thoughts about my experiences at EclipseCon. Read more ›

Tagged with: , , , , , , , , , , ,
Posted in Misc
